Product Details:
|
| Name Of Product: | EZCHEK Urine Analyzer (Portable/Low Speed) Result In 1 Minutes, Urine Analysis Solution | Principle: | Photoelectric Colorimetry |
|---|---|---|---|
| Specimen: | Urine | Certificate: | CE |
| Reading Time: | 1 Minute | Storage Temperature: | 2-30°C |
| Shelf Life: | 2 Years | Feature: | High Sensitivity, Specificity, And No Cross Reactivity |
| Pack: | 1 Unit | Weight:: | 600g |
| Dimensions(L/W/H):: | 200*137*52 Mm | ||
| High Light: | Portable Urine Chemistry Analyzer,Low Speed Urine Chemistry Analyzer,EZCHEK Urine Chemistry Analyzer |
||
ALLTEST Portable Low Speed Urine Test Solution , EZCHEK Urine Chemistry Analyzer
| Name Of Product: | EZCHEK Urine Analyzer (Portable/Low Speed) Result In 1 Minutes, Urine Analysis Solution |
| Specimen: | Urine |
| Reading Time: | 1 Minute |
| Shelf Life: | 2 Years |
| Pack: | 1 Unit |
| Dimensions(L/W/H):: | 200*137*52 Mm |
| Principle: | Photoelectric Colorimetry |
| Certificate: | CE |
| Storage Temperature: |
2-30 ℃ |
| Feature: | High Sensitivity, Specificity, And No Cross Reactivity |
| Weight:: |
600g |

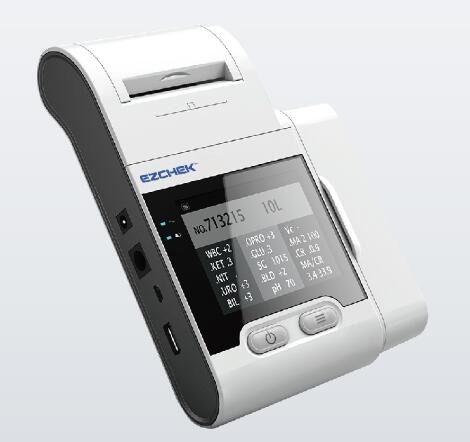

EZCHEK Urine Analyzer (Portable/Low Speed) Result in 1 minutes, Urine Analysis Solution
Urine Analyzer is a semi-quantitative assessment of urine by using dry chemical methods. According to the principle of photoelectric colorimetry, urine analyzer is used to evaluate the content of biochemical components in the urine through the change of color caused by the reaction of the reagent and urine biochemical components. Urine Analyzer reads Urinalysis Reagent Strips. It stores results and prints reports without the need of special training.
Features:
|
Technical Specifications
Principle: Photoelectric Colorimetry Testing Speed : 60 tests/hour Data Memory: 10,000 Results Strip Incubation Time: 1 minute Light Wavelength: 470nm, 525nm and 625 nm Display : 3.5” LCD touch screen Printer: Built-in thermal printer Connectivity: RS232 port ,USB 2 ports Working Condition: 10-30℃, RH≤ 80% , 76-106kPa Working Voltage: AC 100-240V, 50/60Hz, DC 5.85V±0.45V (AA×4) Weight: 600g Dimensions(L/W/H): 200*137*52 mm |
●ACR (Albumin / Creatinine Ratio) Available! ●Comprehensive Range of Test Menu ●Built-in Battery Available for STAT Usage ●Testing Up to 14 Parameters in One Go ●Light Weight for Easy Mobility ●Built-in Thermal Printer for Instant Printing ●Touch Screen Operation with Big Screen for Easy Operation
|
Ultrona Urine Chemistry Analyzer Offering Accurate And Reliable Automation In Urinaly
UltronaTM Urine Analyzer
Offering Reliable Automation in Urinalysis Testing
| Abbr. | Parameter | Abbr. | Parameter | Abbr. | Parameter |
| ASC | Ascorbic Acid | LEU | Leukocytes | CRE | Creatinine |
| BIL | Bilirubin | NIT | Nitrite | PRO | Protein |
| BLO | Blood | pH | pH | URO | Urobilinogen |
| GLU | Glucose | SG | Specific Gravity | ALB | Microalbumin |
| KET | Ketone | CA | Calcium |
| Specification | Technical Parameters | ||||
| Testing Principles | Through reflection photometer to evaluate the color change of urinalysis strip, then calculate the concentration of related items and output semi-quantitative results | ||||
| Testing Wave Length | 470nm,525nm,625nm | ||||
| Testin Seed | 500 samples / hour | ||||
| Stray light | Relative intensity ≤ 1% | ||||
| Linearity | Linear correlation coefficient ≥0.995 | ||||
| Repeatability | Coefficient of variation CV ≤ 1% | ||||
| Stability | During 8 hours of operation, Coefficient of variation CV ≤ 1% | ||||
| Output Options | LCD display, serial port output, Embedded 57mm thermal printer (English/Chinese), External parallel dot matrix printer,(English/Chinese) |
||||
| LCD Screen | 240x64 dot-matrix LCD | ||||
| Report Storage | Stores up to 2000 sets of results. | ||||
| External Ports | RS-232C connected with PC 25 pin centronics port which can driver a dot external printer |
||||
| Working Voltage | AC100-240V 50/60Hz | ||||
| Power | ≤ 45 w | ||||
| Dimension | 200*137*52 mm | ||||
| Weight | 6 kg |
