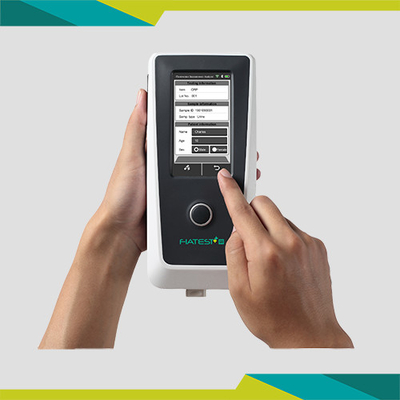

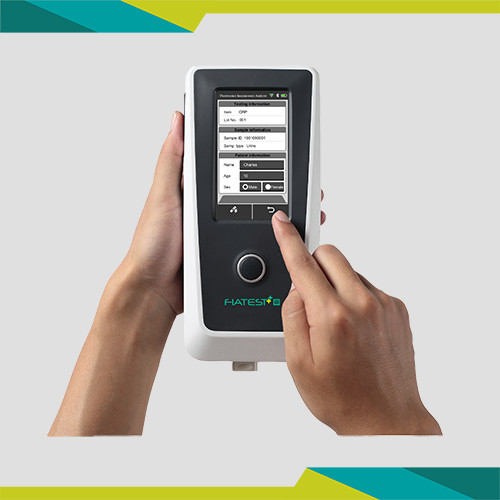

FIATEST GO Fluorescence Immunoassay Analyzer AFR-300

FIATEST GO Fluorescence Immunoassay Analyzer , Less than 1.5 kg Fluorescence Immunoassay Analyzer

Fluorescence Immunoassay Analyzer is an analyzer that based on detection of fluorescence emitted during an immunoassay with antigen antibody intera ction. The analyzer is designed to provide quantitative or qualitative test results by the examination of human samples with specific in vitro diagnostic test units including Inflammation M arkers, Tumor Markers, Nephrology, Diabetes, Cardiac Markers, Coagulation, Endocrinology, Autoimmunity, Infectious Diseases and etc. Fluorescence Immunoassay Analyzer offers the advantages of high accuracy, strong stability and fast results.



How to use?

Refer to Fiatest ^TM Fluorescence Immunoassay Analyzer Operation Manual for the complete instructions on use of the Test. The test should be in room temperature.

1. Turn on the Analyzer power. Then according to the need, select “Standard test” or “Quick test” mode.

2. Take out the ID card and insert it into the Analyzer port.

3. Serum or plasma: Pipette 5 μL serum or plasma into the buffer tube, mix the specimenand the buffer well.

Whole blood: Transfer 7.5 μL whole blood into the buffer tube with sampler provided or pipette; mix the specimen and the buffer well.

4. Add diluted specimen with a Pipette: Pipette 75 μL diluted specimen into the sample well of the cassette. Start the timer at the same time.

Add specimen with sampler provided: Discard the first 2 drops, then add 2 drops of dilutedspecimen into the sample well of the cassette. Start the timer at the same time.

5. There are two test modes for Fiatest ^TM Fluorescence Immunoassay Analyzer, Standard Test mode and Quick Test mode. Please refer to the user manual of FIATEST Fluorescence Immunoassay Analyzer for details.



“Quick test” mode: Insert the test cassette into the Analyzer at 3 minutes after sample application click “QUICK TEST”, fill the test information and click "NEW TEST" immediately. the Analyzer will automatically give the test result after a few seconds.

“Standard test” mode: Insert the test cassette into the Analyzer immediately after sample application, click “STANDARD TEST”, fill the test information and click "NEW TEST" at the same time, the Analyzer will automatically counting down 3 minutes. After the countdown, the Analyzer will give the result at once.

INTERPRETATION OF RESULTS
Results read by Fiatest ^TM Fluorescence Immunoassay Analyzer.
The result of tests for C-reactive Protein is calculated by Fiatest ^TM Fluorescence Immunoassay
Analyzer and display the result on the screen. For additional information, please refer to the user
manual of Fiatest ^TM Fluorescence Immunoassay Analyze.
Linearity range of FluroLit TM CRP is 0.5-200 mg/L.





PRODUCT FEATURES



Technical Specifications
Principle:	Fluorescence   Immunoassay
Test Format   :	Cassette
Measurement :	Quantitative,   Qualitative
Read Time   :	< 10 Seconds
Display   :	4.3" LCD touch   screen
Power Source   :	2*4300mAh
Dimensions(L*W*H)   :	220*100*75 mm
Weight   :	<1.5 kg
OS :	Windows-Compatible   Proprietary Program
Storage Condition :	-10 - 40℃
Working   Condition :	4- 30℃
Printer   :	External   thermal  printer
Connectivity   :	USB   port, Bluetooth, RS232 COM port    (WIFI and GPRS are optional functions)
Built-in   battery:	Rechargeable   Li-ion battery
Compatibility   :	LIS, HIS



1. Plug and play Simple Operation supported by ID cards eliminating the need for calibration each time.
2. Ideal for Emergency situations with lightweight and easy operation.
3. Quantitative Test Results一Critical for emergency therapeutic decisions.
4. Reading time less than 10 seconds - Time-saving.
5. Option of connecting to Laboratory information system.
6. Rechargeable Li-ion Battery for more convenient use
