Novatrend Plus Dry Type Fluorescence Immunoassay Analyzer Single Channel

Novatrend Plus Dry Type Fluorescence Immunoassay Analyzer Single Channel
Novatrend Plus Dry Type Fluorescence Immunoassay Analyzer Single Channel

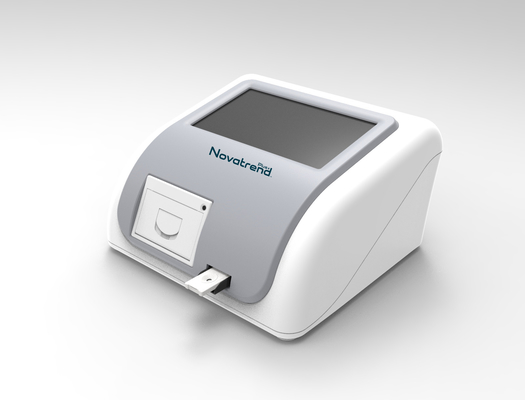

Large Image :  Novatrend Plus Dry Type Fluorescence Immunoassay Analyzer Single Channel

Product Details:
Place of Origin: China
Brand Name: AllTest
Certification: qualified
Model Number: AFR-600
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Price: negotiation
Packaging Details: 1 Unit
Supply Ability: 10 M tests/month

Novatrend Plus Dry Type Fluorescence Immunoassay Analyzer Single Channel

Product: Novatrend Plus Dry-type Fluorescence Immunoassay Analyzer (Single Channel), Fluorescence Immunoassay Analyzer Cat No.: AFR-600
Test Method: Fluorescence Immunoassay Test Format: Cassette
Measurement: Quantitative, Qualitative Reading Time: <20 Seconds
Display: 7"LCD Touch Color Screen Memory: 10000 Records
Dimensions(L*W*H): 220*190*120mm Weight: 2Kg
Storage Conditions: 5~45 ℃,RH ≤85% Working Conditions: 10~30℃,RH≤85%
Period Of Validity: 5 Years
High Light:

Dry Type Fluorescence Immunoassay Analyzer


Fluorescence Immunoassay Analyzer Single Channel

Novatrend Plus Dry-Type Fluorescence Immunoassay Analyzer (Single Channel), Fluorescence Immunoassay Analyzer


Test Method Fluorescence Immunoassay
Test Format Cassette
Measurement Quantitative, Qualitative
Reading Time <20 Seconds
Display 7"LCD touch color screen
Memory 10000 records
Dimensions(L*W*H) 220*190*120mm
Weight 2Kg
Storage Conditions 5~45 ℃,RH ≤85%
Working Conditions 10~30℃,RH≤85%
Printer Built-in thermal printer
Power Source DC24V,2.5A,60W MAX
Compatibility LIS
Scanner Laser barcode scanner with USB port

USB2 ports, LAN port, RS232 COM port

(WLAN is optional functions)

Period of Validity 5 Years


Novatrend Plus Dry-type Fluorescence Immunoassay Analyzer (Single Channel), Fluorescence Immunoassay Analyzer


Intended Use
Novatrend Plus+TM Dry-type Fluorescent Immunoassay Analyzer (Single Channel) is a dry fluorescent immunoassay strip detection system based on photoelectric detection principle, which needs reagents based on fluorescent immunoassay principle. Analyzer uses the specificity of in vitro diagnostic testing unit, including inflammatory markers, tumor markers, markers, diabetes, kidney disease markers, cardiacmarkers, blood coagulation markers, endocrinology markers and markers of autoimmune and infectious disease markers, samples for testing to human body, providing quantitative or qualitative test results. Fluorescence immunoanalyzer has the advantages of high accuracy, strong stability and fast results.
The instrument is used by in vitro diagnosis professionals and nursing points, and can be used in central laboratories, outpatient and emergency departments, clinical departments or medical service institutions (such as community health centers), medical centers, etc. It can also be used in research laboratories. Novatrend Plus+TM Dry-type Fluorescent Immunoassay Analyzer (Single Channel) can only be used for in vitro diagnostic reagents produced by Hangzhou AllTest Biotechnology Co., LTD., according to the instructions of the specific kit.
Installation and Trial Run
The first installation confirmation of the instrument must be approved by the company's authorized technical engineer or agent.
Please place the instrument on a flat table with sufficient area and no vibration. The bearing capacity of the table is more than 18kg and the platform area is > 70cm*50cm; Keep a sufficient distance between the device and the wall. Do not place the device in a position where it is difficult to operate and disconnect the device. Take out the power cord, connect one end of the device to the power interface on the rear panel, and connect the other end to the power supply socket. There must be good grounding protection, and the grounding resistance should meet the relevant national standards. There should be independent and reliable ground cables in the room, and they should not share the same line with high-power electrical equipment.
Relative humidity: ≤85%;
Environment: no toxic gases, flammable, explosive substances and corrosive gases are allowed. Attention should be paid to moistureproof, shock and severe vibration during transportation.
Operating Principle
This analyzer excites the reacted test cassette which is a based on europium microspheres marked fluorescence immunoassay with a UV LED light source, then collects, analyzes and calculates the signal from the test card, and gives the test result.
Novatrend Plus Dry Type Fluorescence Immunoassay Analyzer Single Channel 0
1:Touch screen;2:Reagent strip socket;3:Built-in Thermal Printer
1. Touch screen:Display instrument software interface and other information
2. Reagent strip socket:Reagent load
3. Built-in Thermal Printer:Used to print test results
Novatrend Plus Dry Type Fluorescence Immunoassay Analyzer Single Channel 1
1:Power switch; 2:power interface; 3:LAN port;
4:USB port; 5:COM port; 6:CODE socket
1. Power switch:Power on or off the instrument
2. power interface:Connect the power cable, as shown in Fig 3.2.3
3. LAN port:Connecting network cables
4. USB port:Used for upgrading software, exporting data or connecting scan gun with instrument USB disk
5. COM port:Used to transmit data
6. CODE socket:Insert code and read code data
Precautions for Installation and Commissioning
  • Please choose a suitable place according to the environment, power supply and space requirements.
  • The connection between the power cord and the instrument must be safe, firm and in good contact.
  • After confirming the connection, you can start the machine.
  • When using, avoid direct glare as far as possible, and prohibit non-professional maintenance personnel to open the instrument.
  • Please do not put water containers or metal objects on the instrument. If water or metal objects fall into the instrument accidentally, unplug the power plug in time and cut off the power supply. Find a professional to deal with it.
  • If there is smoke, abnormal sound, or peculiar smell, disconnect the power supply and contact professional personnel in time.
  • Please avoid the impact of external force on the instrument.
  • When the instrument is working, do not put your hand on the working area of the instrument to avoid injury.
  • Ensure that the device is powered off and the power adapter is removed. Do not move the device when the power is on


Product Advantages:


Large Memory

(Capable of storing 10,000result records)

High Accuracy

(Stringent Quality Control Monitoring &System Check Function)


(Simple Plug& Play Operation, Big LCD Touch Screen)

Easy Operation

(Less Training Required)

Ideal for Emergency Situations

(Lightweight, Small Size and Easy Operation)


(Reading Time less than 20 Seconds)

Get Printing Test Reports Instantly

(Built-in Thermal Printer )
