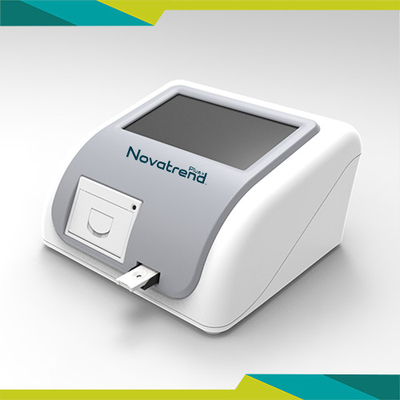

7" LCD Touch Color Screen Fluorescence Immunoassay Analyzer Single Channel

7" LCD Touch Color Screen Fluorescence Immunoassay Analyzer Single Channel
7" LCD Touch Color Screen Fluorescence Immunoassay Analyzer Single Channel

Large Image :  7" LCD Touch Color Screen Fluorescence Immunoassay Analyzer Single Channel

Product Details:
Place of Origin: China
Brand Name: Novatrend
Certification: qualified
Model Number: AFR-600
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Price: negotiation
Packaging Details: 1 Unit
Supply Ability: 10 M tests/month

7" LCD Touch Color Screen Fluorescence Immunoassay Analyzer Single Channel

Product: Novatrend Plus Dry-type Fluorescence Immunoassay Analyzer (Single Channel), Fluorescence Immunoassay Analyzer Cat No.: AFR-600
Test Method: Fluorescence Immunoassay Test Format: Cassette
Measurement: Quantitative, Qualitative Reading Time: <20 Seconds
Display: 7"LCD Touch Color Screen Memory: 10000 Records
Dimensions(L*W*H): 220*190*120mm Weight: 2Kg
Storage Conditions: 5~45 ℃,RH ≤85% Working Conditions: 10~30℃,RH≤85%
Period Of Validity: 5 Years
High Light:

Touch Screen Fluorescence Immunoassay Analyzer


7" LCD Fluorescence Immunoassay Analyzer

7"LCD Touch Color Screen Novatrend Plus Dry-Type Fluorescence Immunoassay Analyzer (Single Channel),


Test Method Fluorescence Immunoassay
Test Format Cassette
Measurement Quantitative, Qualitative
Reading Time <20 Seconds
Display 7"LCD touch color screen
Memory 10000 records
Dimensions(L*W*H) 220*190*120mm
Weight 2Kg
Storage Conditions 5~45 ℃,RH ≤85%
Working Conditions 10~30℃,RH≤85%
Printer Built-in thermal printer
Power Source DC24V,2.5A,60W MAX
Compatibility LIS
Scanner Laser barcode scanner with USB port

USB2 ports, LAN port, RS232 COM port

(WLAN is optional functions)

Period of Validity 5 Years


Novatrend Plus Dry-type Fluorescence Immunoassay Analyzer (Single Channel), Fluorescence Immunoassay Analyzer


Intended Use
Novatrend Plus+TM Dry-type Fluorescent Immunoassay Analyzer (Single Channel) is a dry fluorescent immunoassay strip detection system based on photoelectric detection principle, which needs reagents based on fluorescent immunoassay principle. Analyzer uses the specificity of in vitro diagnostic testing unit, including inflammatory markers, tumor markers, markers, diabetes, kidney disease markers, cardiacmarkers, blood coagulation markers, endocrinology markers and markers of autoimmune and infectious disease markers, samples for testing to human body, providing quantitative or qualitative test results. Fluorescence immunoanalyzer has the advantages of high accuracy, strong stability and fast results.
The instrument is used by in vitro diagnosis professionals and nursing points, and can be used in central laboratories, outpatient and emergency departments, clinical departments or medical service institutions (such as community health centers), medical centers, etc. It can also be used in research laboratories. Novatrend Plus+TM Dry-type Fluorescent Immunoassay Analyzer (Single Channel) can only be used for in vitro diagnostic reagents produced by Hangzhou AllTest Biotechnology Co., LTD., according to the instructions of the specific kit.
Installation and Trial Run
The first installation confirmation of the instrument must be approved by the company's authorized technical engineer or agent.
Please place the instrument on a flat table with sufficient area and no vibration. The bearing capacity of the table is more than 18kg and the platform area is > 70cm*50cm; Keep a sufficient distance between the device and the wall. Do not place the device in a position where it is difficult to operate and disconnect the device. Take out the power cord, connect one end of the device to the power interface on the rear panel, and connect the other end to the power supply socket. There must be good grounding protection, and the grounding resistance should meet the relevant national standards. There should be independent and reliable ground cables in the room, and they should not share the same line with high-power electrical equipment.
Relative humidity: ≤85%;
Environment: no toxic gases, flammable, explosive substances and corrosive gases are allowed. Attention should be paid to moistureproof, shock and severe vibration during transportation.
Operating Principle
This analyzer excites the reacted test cassette which is a based on europium microspheres marked fluorescence immunoassay with a UV LED light source, then collects, analyzes and calculates the signal from the test card, and gives the test result.
7" LCD Touch Color Screen Fluorescence Immunoassay Analyzer Single Channel 0
1:Touch screen;2:Reagent strip socket;3:Built-in Thermal Printer
1. Touch screen:Display instrument software interface and other information
2. Reagent strip socket:Reagent load
3. Built-in Thermal Printer:Used to print test results
7" LCD Touch Color Screen Fluorescence Immunoassay Analyzer Single Channel 1
1:Power switch; 2:power interface; 3:LAN port;
4:USB port; 5:COM port; 6:CODE socket
1. Power switch:Power on or off the instrument
2. power interface:Connect the power cable, as shown in Fig 3.2.3
3. LAN port:Connecting network cables
4. USB port:Used for upgrading software, exporting data or connecting scan gun with instrument USB disk
5. COM port:Used to transmit data
6. CODE socket:Insert code and read code data
Precautions for Installation and Commissioning
  • Please choose a suitable place according to the environment, power supply and space requirements.
  • The connection between the power cord and the instrument must be safe, firm and in good contact.
  • After confirming the connection, you can start the machine.
  • When using, avoid direct glare as far as possible, and prohibit non-professional maintenance personnel to open the instrument.
  • Please do not put water containers or metal objects on the instrument. If water or metal objects fall into the instrument accidentally, unplug the power plug in time and cut off the power supply. Find a professional to deal with it.
  • If there is smoke, abnormal sound, or peculiar smell, disconnect the power supply and contact professional personnel in time.
  • Please avoid the impact of external force on the instrument.
  • When the instrument is working, do not put your hand on the working area of the instrument to avoid injury.
  • Ensure that the device is powered off and the power adapter is removed. Do not move the device when the power is on
Power On
Press the power button
Enter startup initialization. After successful initialization, enter the main interface.

7" LCD Touch Color Screen Fluorescence Immunoassay Analyzer Single Channel 2




  • Please do not operate the instrument, and the company will not be responsible for any malfunction caused by the instrument
  • For the described use only, use our reagent only;
  • The customer must prepare for the installation according to the instructions;
  • Only authorized technical service personnel can carry out installation work, only professional personnel can carry out after-sales service and repair work, and only maintenance work specified in the manual can be performed by users;
  • Improper operation of the instrument under electric condition will cause damage to the instrument. It is not allowed to interfere with the normal movement of the instrument;
  • If there is liquid inside the instrument, please turn off the instrument and cut off the power in time, and the after-sales service personnel will check and clean up;
  • Operations specified in the specification to be performed by technical service personnel must be performed by authorized technical engineers;
  • Materials from human or animal sources, as well as tissue or in vitro cultures, must be handled in accordance with the principle of potential risk of infection. Always wear appropriate protective equipment such as approved disposable gloves, waterproof laboratory coats and safety goggles when handling biohazardous materials. Dispose of biohazardous materials according to equipment biohazard procedure;
  • The following items must be treated as potential biohazards: all in vitro diagnostic equipment, pretreatment equipment, patient samples, serum-based calibration reagents, quality control products and waste materials.
  • Waste disposal must comply with local laws and regulations
  • Always wear approved protective equipment when operating or maintaining the system. Protective equipment must include (but not limited to) approved protective gloves, waterproof lab coat, protective masks, and goggles
  • If biohazardous material spills onto the instrument, it should be cleaned immediately, washed with residual material, and disinfected with disinfectant
  • If any biohazard comes into contact with the skin, wash immediately, disinfect with disinfectant in accordance with laboratory practice, and consult a doctor
  • Fire regulations in the medical field must be strictly observed and enforced and fire extinguishers for both electrical and non-electrical fires must be provided
  • For electrical fires, use only specific extinguishers. Water or other liquid extinguishers can cause serious injury. For the sake of safety, the power supply should be cut off before extinguishing the fire to eliminate the danger of electric shock
  • Keep flammable materials away from the instrument when using alcohol for repair or inspection. When using ethanol on or around the instrument, do not exceed 20mL at a time. Isopropyl alcohol and ethanol (70%) are flammable substances and present combustion, explosion and burn hazards
  • Any serious incident that has occurred in relation to the device shall be reported to the manufacturer and the competent authority

Product Advantages:


Large Memory

(Capable of storing 10,000result records)

High Accuracy

(Stringent Quality Control Monitoring &System Check Function)


(Simple Plug& Play Operation, Big LCD Touch Screen)

Easy Operation

(Less Training Required)

Ideal for Emergency Situations

(Lightweight, Small Size and Easy Operation)


(Reading Time less than 20 Seconds)

Get Printing Test Reports Instantly

(Built-in Thermal Printer )
